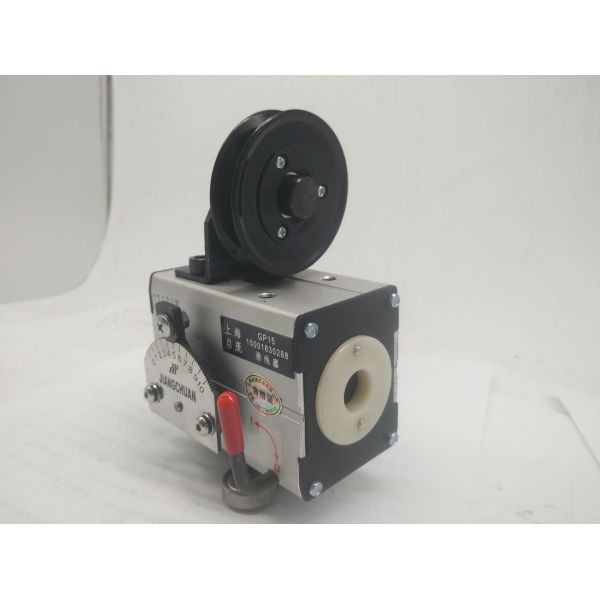

Qipang Rolling ring traverse drive for GP3-15/20/30/40/50/60 type C Traverse Roll
Shanghai Qi Pang Industrial Co., LTD has been working on the supply of Rolling Ring Drive equipment since 2008. During this time, the company supplied supplies to many cable, textile and construction companies located in most European countries, Southeast Asian countries, the Americas and northern African countries.
The GP series polished rod cable proves its operation from the front. The high quality materials and assembly quality used in the manufacturing process can compete freely with similar equipment made in Europe.
The Rolling Ring Drive unit on the smooth shaft is designed to evenly lay cables and other winding products on coils and coils on Spools of any width.
The device maintains a constant step when winding the product from the first layer to the last layer. This winding allows you to increase the packing density and improve the display of the finished product.
The device of this type is simple and reliable in operation, does not require special maintenance and has a simple mechanism for adjusting the stages of lamination.
Our Company
Shanghai Qi Pang Industrial Co., LTD, is a professional manufacturer which is specialized in making rolling ring linear drives (traverse unit, rolling ring drive, linear actuators, linear motion assemblies), We always adhere to the talent oriented and honest business principles since our company established . Our company will continue to attract talents in various fields and advance foreign advanced technology to make our products have a high quality and precision. Our company developed a new type machine in 2015. It is a new type of machine : Frequency Take-up machine.
We always adhere to the principle of quality first, credit first and customer first. We sincerely welcome our old and new customers to cooperate and create a better future.
Type A / B/ C
Rolling ring drives Type A Series :just have one Rolling Ring linear drive , which are divided into eight types according to the diameter of the shafts. Our product are widely used in wire,steel wire,electrical wire, cable, textile industry etc.
Rolling ring drives Type B Series:He can be placed above guide or guide frame, more convenient to use, can be used for different sizes and materials of the line .
Rolling ring drives Type C Series:He is a combination, is a set of equipment, without your own installation, you can use to buy, easy and simple
| Model | GP15 | GP20 | GP30 | GP40 | GP50 | GP60 |
| A*B*C ( mm ) | 92*52*66 | 111*68*85 | 135*85*105 | 160*101*129 | 184*119*149 | 220*132*160 |
| D | | 215 | 215 | 240 | 360 | 360 |
| E | | 30-60 | 30-60 | 32-77 | 37-77 | 37-77 |
| F | | 25 | 25 | 32 | 38 | 38 |
| G | 14 | 14 | 14 | 17 | 25 | 25 |
| H | 38 | 40 | 42 | 50 | 60 | 60 |
| I | 16 | 18 | 20 | 22 | 28 | 28 |
| J | 24 | 35 | 55 | 60 | 70 | 70 |
| K | 48 | 60 | 70 | 85 | 96 | 101 |
| M | | 50 | 50 | 65 | 65 | 65 |
| S | 40 | 70 | 70 | 76 | 100 | 100 |
| N | 32 | 40 | 60 | 70 | 80 | 80 |
| 4-M | 4-M6 | 4-M6 | 4-M6 | 4-M12 | 4-M12 | 4-M12 |
| Thrust N | 100 | 135 | 265 | 420 | 700 | 1000 |
| Weight KG | 1.2 | 2.5 | 8.5 | 11.2 | 33 | 42 |
| Moving intercept | 0.1-11 | 0.1-16 | 0.1-25 | 0.5-32 | 1-40 | 1.5-48 |
Product display
Installation instruction
It is important to prepare the polished shaft, the guide bar, the end stop lead screw, the endstops, etc. according to the installation dimensions of relative types and the technical requirementsof equipment, as the figure shows.
Polished Shaft Surface hardness: HRC50- -60; Tolerance on diameter: h6; True runningtolerance: <0. 1mm/m; Length: not larger than 20- 30 times of the diameter of the shaft; Leadingend chamfer: 2x 30°.
Ratio of take-up reel and the shaft in general, the shaft speed should be smaller than thetake- -up reel speed so that the shaft and traverse drive lives could be increased. It isrecommended that the rotation ratio of the shaft over the take-up reel be 1:1-1:5, with lower ratiofor thicker wires and higher ratio for thinner wires, and the scale indication not being less than 1.
Direction of Shaft Rotation the rotation direction of the shaft transmitted by the take- -up reelmay be either positive or negative, however, there is difference regarding the installation positionsof the reversal arm, or otherwise the direction could not be switched. When facing the scale dial,downward rotation is defined as positive. The reversal may be realized only when the trigger rolleris installed backward. The shaft rotation is presetted and installed as in positive direction at thefactory.
