Diameter 32 mm 14 Roller Wire Straightener Straightener suit 3-4 mm diameter line factory Outlet
Wire Straightener Straight Solid line 3-4 mm
Wire Straightener Machine Parameter:
Straightener line Specifications: 3-4 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ32 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 14 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 9.5 KG, even packaging 11KG
Wire straightener size: 18 wheels, two pieces: length 398mm × width 130mm × height 130mm
4. The iron wire passes through the 2 sets of straightening wheels from the wire frame all the way to the incision. Press the screw, press the hoe, press the jog feed line, and press the jog switch to straighten the cut and connect. Then open the automatic switch and you can work continuously.
Wire Straightener Machine specification:
| Type | JZQ0.8-1.5/18 |
| Machine roller Diameter | 23mm |
| Length * width * height | 350 mm × 120 mm 120 mm |
| Weight | 8kg (not including the wooden box ) |
| Distance to install screw holes | 85 mm |
| Distance between two wheels | 26 mm |
| Roller thickness | 7 mm |
| Mounting roller screw diameter | 7 mm |
Wire Straightener Machine equipment maintenance
1. Check each screw tightly every day, add lubricant to each turn, and turn it on again.
2. Generally, do not disassemble parts during routine maintenance. When disassembling, it should be carried out by a special repair worker. If abnormal phenomena are found during operation of the equipment, it should be stopped immediately, and it is not allowed to operate with disease.
3. Regularly check whether the screws and fastening parts of each part are locked. Do not allow looseness. Check whether the power cord is aging or not. The socket contact is good and reliable, and repair and replace it in time.
4. If it has not been used for a long time, it should be cleaned first and kept safely. It should be fully lubricated once every six months and idling for a short time.
5. Equipment accessories and special tools should have special cabinet racks to keep clean and prevent rust and bumps.

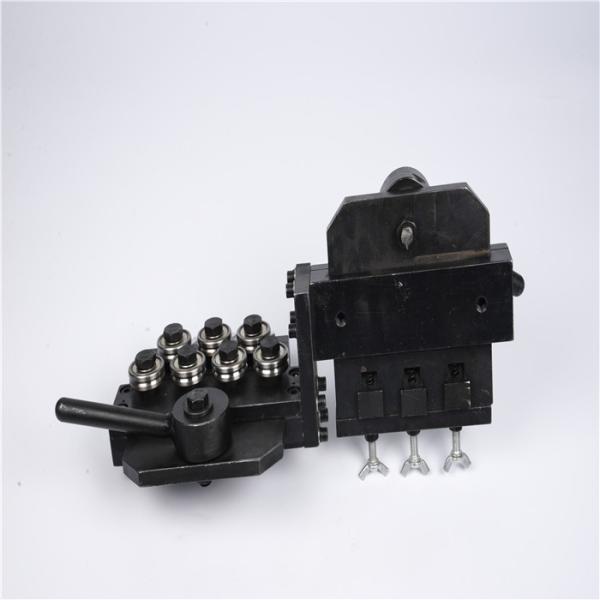

Product show :
